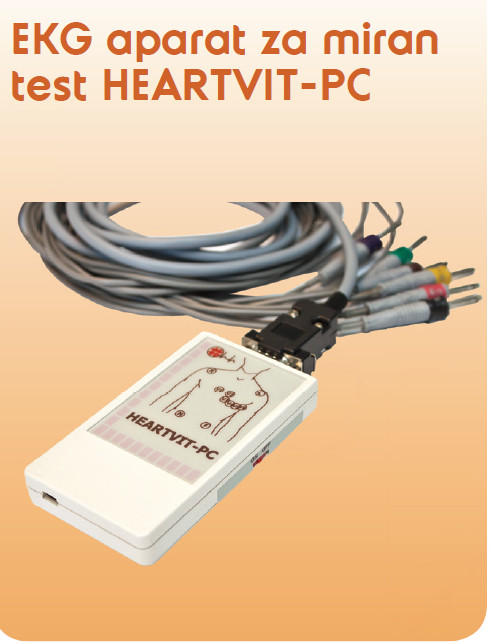

Figure 1. HEARTVIT-PC module

HEARTVIT-PC 12-channel ECG

• 12-channel resting ECG

• ECG signal quality

• The system consists of the module HEARTVIT-PC and Scope software that runs in Windows OS.

• The Scope ECG interpretive software is highly accurate

• Database for the ECG recordings

• ECG reports are printed on A4 paper

• Graphical representation of measured ECG parameters

HEARTVIT-PC module characteristics

• 12 standard leads acquisition: D1, D2, D3, aVR, aVL, aVF, V1-V6

• Analog amplifier bandwidth: 0.05Hz - 100Hz

• Dynamic range: +/- 5mV

• Input impedance: >20MOhm

• Sampling frequency: 500Hz,

• ADC resolution: 5uV

• Analog filters: 0.05Hz High-pass, 50Hz Notch

• USB connection to PC, power supply also from USB

• Power consumption:0.35W

• 5200V galvanic isolation, defibrillator protection

• Dimensions: 105x58x18.5mm,

• Weight: 150g

The Scope ECG software

• Scope software provides plenty of useful features for recording and analyzing the ECG signals.

• The electrocardiogram is shown in real-time on PC monitor.

• The doctor can print recordings and analysis results on printer
  connected to the PC.

• Also, the software provides database for ECG recordings
  storing.

• The recordings can be sent over the internet in the form of PDF file.

• The software is designed to be simple and intuitive, and, because of this, HEARTVIT-PC can be used immediately.

• Provides analysis results :
  intervals (RR, P, PR, QRS, T, QT, QTc); ST level, ST slope;
  cardiac axes (QRS, T, P)

Download HEARTVIT-PC 12-channel ECG product brief

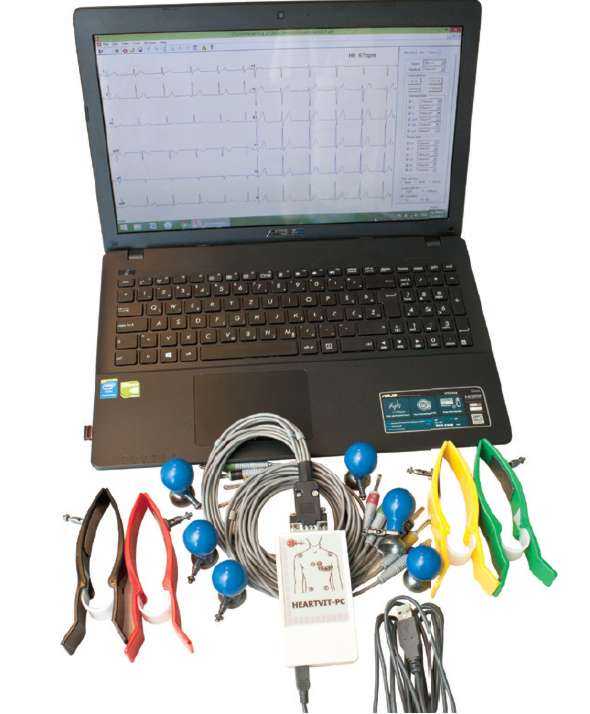

Figure 2. HEARTVIT-PC 12-channel ECG system

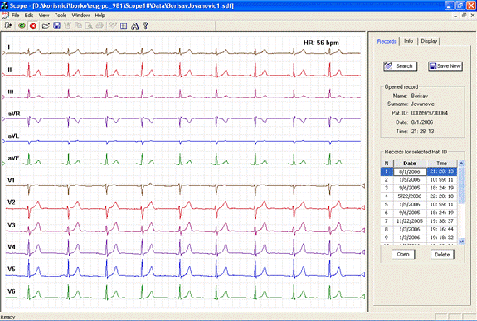

Figure 3. Scope application main window: 12x1 View

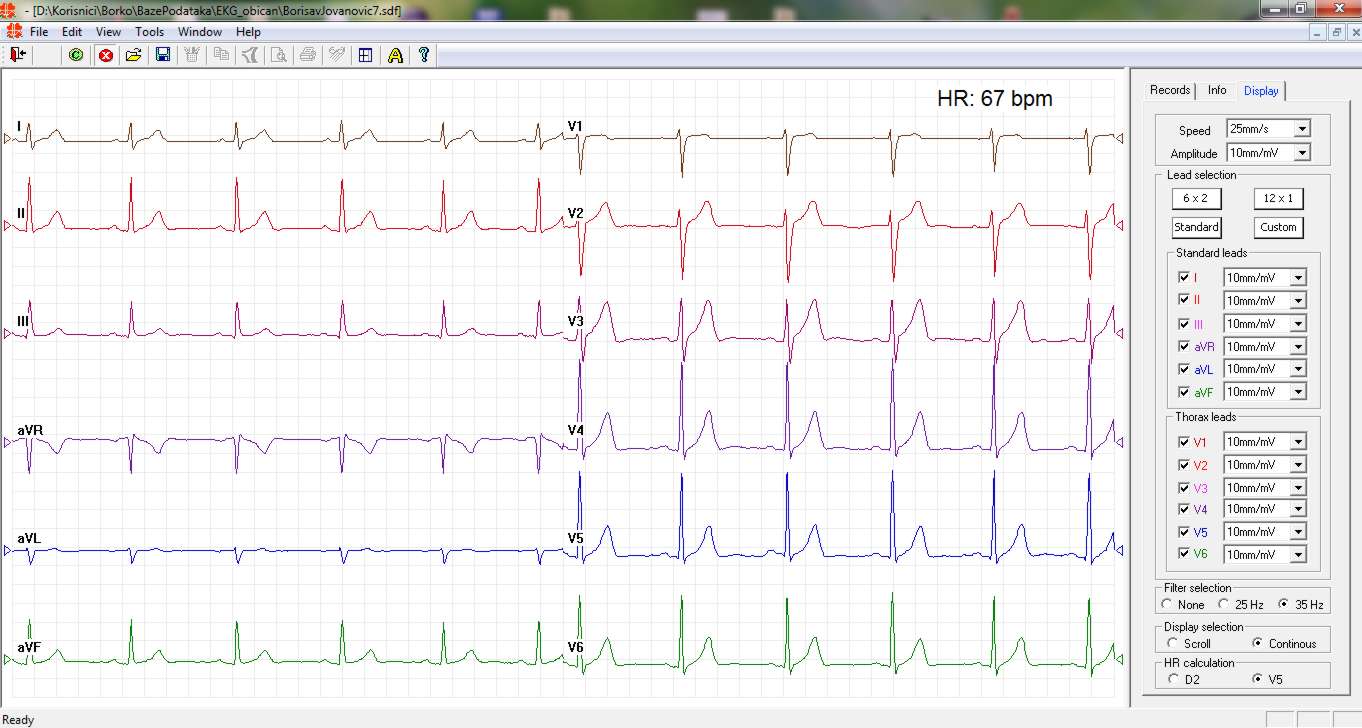

Figure 4. Scope application main window: 6x2 View

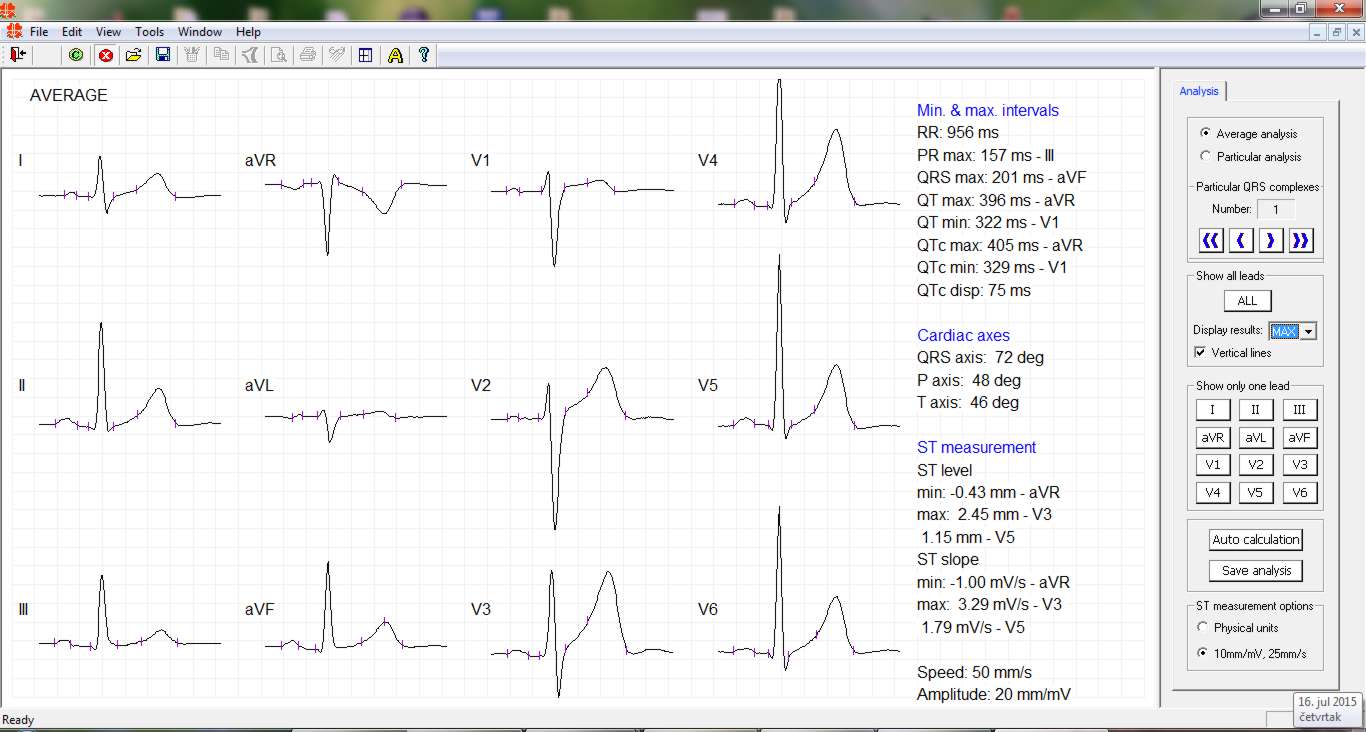

Figure 5. ECG Analysis window

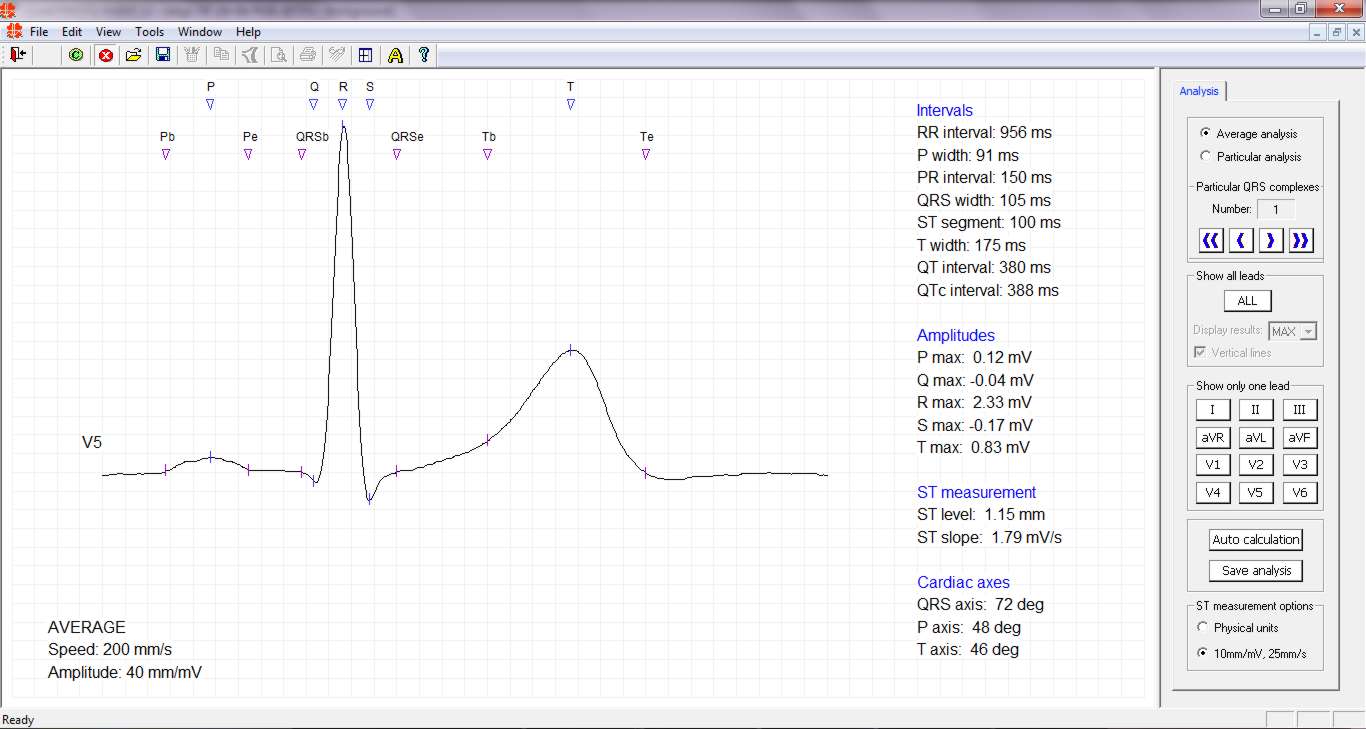

Figure 6. ECG Analysis window: lead V5
